3 axle 40ft 10 bundle tube skid container CNG tube tank trailer 8 and 12 tube Cng Tube Trailer Carriage Natural Gas Tank
1. Function:
This type CNG tube trailer, can store and trasnport CNG, they are designed, manufactured, inspected and accepted according to ISO11120 Cylinder-design, structure and test of seamless and reusable steel tube with a capacity between 150L to 3000L.
2. Application:
1] For CNG transportation from mother station/ gas reserve to daughter station.
2] For CNG transportation to places where pipeline network hasn't been built.
3] For CNG transportation to places where can't reach existing distribution system etc.
4] For CNG storage at gas stations.

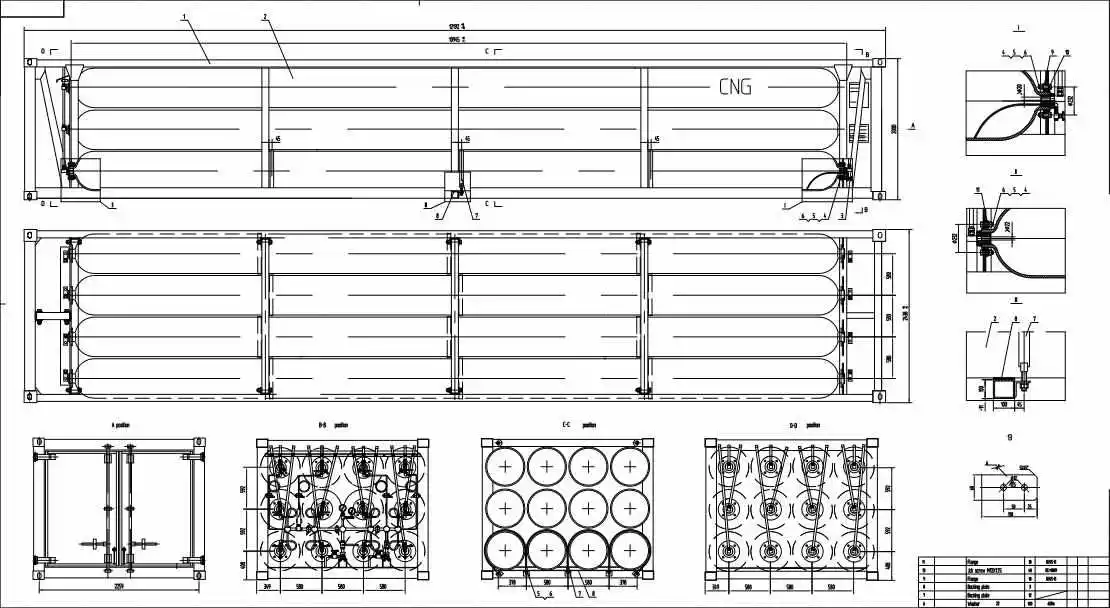

8 TUBES CNG TRAILER
Transportation medium: Compressed Natural Gas tube/bottle pressure vessels.
Each tube has: 11582mm length, 559mm diameter. Quality Filling: 5400N/m3
6 TUBES CNG TRAILER
Transportation medium: Compressed Natural Gas tube/bottle pressure vessels.
Each tube has: 12190mm length, 711mm diameter. Quality Filling: 6300N/m3
| Tube Bundle Container | Cylinder |
| Item | Item |
| Tare weight | 30740Kgs (include chassis) | Working pressure | 25MPa |
| Filling quality | 4410Kg | Working temperature | -50~65 d C |
| Total weight | 35150Kgs (include chassis) | Main material | 30CrMoLX |
| Major risk category | 2.1 | Cylinder QTY | 6 or 8 |
| UN code | 1049 | Total volume | 19.6M3 |
| Filling medium | CNG | Pressure for water pressure test | 37.5MPa |
| Gas tightness test pressure | 25Mpa | Dimension(mm) | N x11570 |
Pipeline water pressure test pressure | 37.5MPa | Design temperature | 65 d C |
| Filling amount | 6174Nm3 | Medium property | Explosive |
| Overall dimension (mm) | 12450*2480*3460 (8 tubes) 13000*2480*3140 (6 tubes) | Bursting discs | Burst pressure 37.5MPa |
| Transporting | Highway combined transport | Bursting disc device discharge aperture |
| Design service life | Fifteen years | ≥20 |
| Chassis: |
| Axle | 3 Axles, 13 Tons FUWA brand |
| Tire | 13 pcs, include one spare tire |
Advantages for CNG Tube Trailer:
1] Seamless structure provide the most reliable guarantee for operation safety.
2] The container have large volume capacity which can reduce transportation turnover and improve the working efficiency.
3] Large size sturcture allows for a reduction in the number of valves and few knots which without much piping, in order to reduce the risk of leakage.
4] The whole CNG tube transport truck tank semi trailer have light weight which can reduce the tractor power and the cost of investment.
5] The CNG tube transport truck tank semi trailer have the gas supply device which can be directly provided the natural gas fuel for energy saving.
