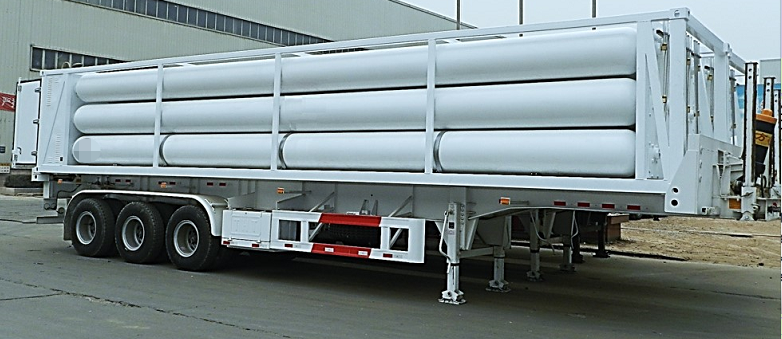

40ft 12-tube CNG TUBE SKID with semitrailer chassis cng tanker trailer
40ft 12-tube CNG TUBE SKID with semitrailer chassis cng tanker trailer

Quality first, customer first

    Sinolorry

    Director : Ms Annie

    Tel:+8618678298349

    E-mail:info@sinolorry.com





    • 40ft 12-tube CNG TUBE SKID with semitrailer chassis


      40ft 12-tube CNG TUBE SKID
      Design Standard: ISO 11120
      Medium: Compressed Natural Gas (CNG)
      Design Pressure: 250bar
      Water Capacity: 29.16m³
      Gas Capacity: 8855Nm³ @15℃
      Loading Weight: 6377kg @15℃
      Working Temperature: -40~60℃
      Tube Spec: OD559 × 14.8 × 11580 mm, 4142   Material
      Tube Skid Size: 40ft 12 tubes, 12192 × 2438 ×   2035 mmTare Weight: 34260kg
      Chassis (Semi-trailer)40ft,
      3 axles, JOST landing legs, with ABS
